If you have a small garden pond, a fish tank, or a backyard water feature, you have probably wondered how to keep the water clean and oxygenated without running an expensive electrical cord across your yard. A solar pond aerator offers an elegant solution: it uses free energy from the sun to produce bubbles that oxygenate the water. But how exactly does it work? This guide explains the simple yet clever engineering behind a solar aeration system, from sunlight to bubbles.
A solar pond aerator converts sunlight into electricity using a photovoltaic panel.
The electricity powers a small, silent air pump that pushes air through a tube to one or more air stones.
Fine bubbles rise through the water, transferring oxygen and creating gentle circulation.
Most models include a rechargeable battery that stores excess energy, allowing the aerator to run at night or on cloudy days.
The system is automatic, requires no wiring, and has no ongoing electricity costs — ideal for small ponds, fish tanks, and hydroponic setups.
A solar aerator is a device that adds oxygen to water using only solar power. It prevents stagnation, supports fish and plant life, and reduces algae growth. Unlike traditional aerators that plug into a wall outlet, a solar aerator can be placed anywhere there is sunlight. This makes it perfect for remote ponds, wildlife gardens, or any water feature where running electricity is difficult or expensive.
To understand how a solar aerator works, you first need to know its basic parts. Every solar aeration system includes:
Solar panel – Converts sunlight into direct current (DC) electricity.
Charge controller – Regulates the flow of electricity to protect the battery and pump.
Rechargeable battery – Stores surplus energy for use when the sun is not shining.
Air pump – A small, quiet pump that generates a steady stream of air.
Air tubing – Carries air from the pump to the water.
Air stone (diffuser) – Breaks the air into tiny bubbles for efficient oxygen transfer.

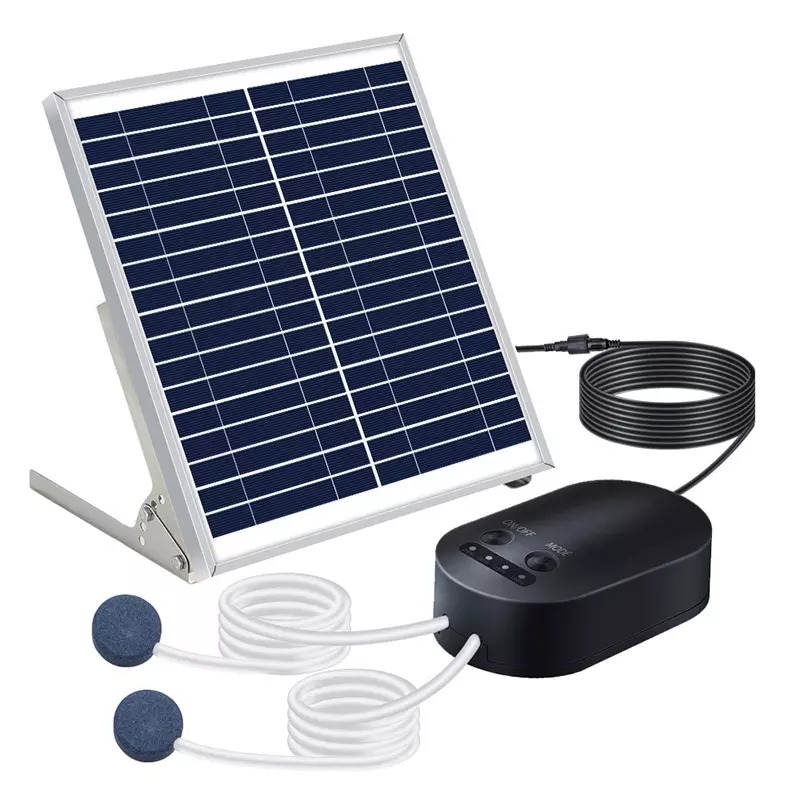

These components are often integrated into a single compact unit, with the solar panel connected by a weatherproof cord. You simply place the panel in the sun, put the air stone in the water, and turn the system on.
The process begins with the solar panel. Most small aerators use monocrystalline or polycrystalline silicon panels. When sunlight strikes the panel, photons knock electrons loose, creating a flow of DC electricity. The more intense the sunlight, the more electricity is produced. Even on an overcast day, the panel generates some power — though less than in full sun.
Keyword focus: solar pond aerator working principle — the panel is the heart of the system, converting light directly into electrical energy.
The electricity flows to a small circuit board called a charge controller. This smart device does two things:
It sends power directly to the air pump when the sun is shining.
It directs any excess power to charge the built‑in battery.
At the same time, the controller prevents the battery from overcharging, which would shorten its life. This automatic management means you never have to worry about switching modes or turning the system on and off.
The air pump is a brushless DC pump. It uses the electricity to move a diaphragm or piston back and forth, drawing in air from the atmosphere and pushing it out through the outlet. Brushless pumps are nearly silent, consume very little power, and have no friction parts to wear out quickly.
For small water features, a typical solar air pump produces an airflow of 0.5 to 1.5 litres per minute. Larger units (up to 30W) may deliver 6–10 L/min, suitable for bigger ponds.
Long‑tail keyword: solar powered air pump for garden pond — the pump’s quiet, low‑power operation makes it ideal for residential gardens.
The air moves from the pump through a flexible silicone or PVC tube. The tube is usually 1–3 meters long, allowing you to position the solar panel in the sunniest spot while placing the air stone at the deepest point of the pond or tank.
The air stone is a porous material (ceramic, rubber, or stone). As air is forced through its tiny pores, it breaks into thousands of microscopic bubbles. Why does this matter? Fine bubbles have a much larger total surface area than large bubbles, so they transfer oxygen into the water far more efficiently.
As the bubbles rise, they also create a gentle upward current. This current lifts oxygen‑poor water from the bottom to the surface, where it can absorb more oxygen from the air. Over time, this circulation prevents “stratification” — the layering of warm, oxygen‑rich water on top of cold, dead water.
Keyword: how does a solar aerator work — the air stone is the key to efficient oxygen transfer.
One of the most useful features of a modern solar aerator is the built‑in rechargeable battery (usually lithium‑ion). During sunny hours, the battery charges. After sunset or on cloudy days, the battery automatically powers the pump.
Battery capacity is measured in milliampere‑hours (mAh). For example:
A 2400 mAh battery may run the pump for 18–36 hours, depending on the operating mode.
A larger 8800 mAh battery can provide up to 66 hours of runtime on a cycling mode.
This battery backup ensures that your pond or fish tank receives aeration even through the night or several consecutive cloudy days. You do not lose oxygen when the sun dips below the horizon.
Many solar aerators offer selectable operating modes. These modes change how the pump behaves, which affects both oxygen output and battery life.
| Mode | Description | Best for |
|---|---|---|
| Strong | Pump runs continuously at full power | Hot weather, high fish load, quick oxygen boost |
| Gentle | Pump runs continuously at lower power | Normal daily use, quieter operation, longer battery life |
| Cycling | Alternates on/off (e.g., 10 seconds on, 10 seconds off) | Maximum runtime (up to 72 hours), overnight aeration |
The cycling mode works because the battery recharges slightly during the off periods while still providing enough bubbles to maintain oxygen levels. It is an excellent choice for cloudy weeks or when you want to minimise maintenance.
Once bubbles enter the water, two important processes occur:
Oxygen transfer – Water naturally tries to reach a state of oxygen saturation. If the water has low dissolved oxygen (common in stagnant ponds or warm weather), oxygen from the bubbles diffuses into the water. The fine bubbles from a good air stone maximise this diffusion.
Circulation – Rising bubbles drag water upward, creating a gentle vertical current. This current brings oxygen‑poor bottom water to the surface, where it can be re‑oxygenated by direct contact with the air. Over time, the entire water column becomes mixed and oxygenated.
These processes support beneficial aerobic bacteria that break down fish waste, fallen leaves, and uneaten food. They also discourage mosquitoes, which prefer still water for laying eggs.
Long‑tail keyword: solar aeration system for small water features — the gentle circulation is perfect for wildlife ponds, small koi ponds, or container water gardens.
A solar aerator works best in:
Small garden ponds (up to a few thousand litres)
Fish tanks and aquariums (placed near a sunny window)
Hydroponic and aquaponic reservoirs
Livestock water troughs
Bait buckets for fishing
It is not designed for:
Large, deep lakes (over 5 feet / 1.5 meters deep)
Ponds larger than half an acre
Heavy ice breaking in freezing winters
For larger bodies of water, you would need a commercial‑grade system with a high‑pressure compressor and multiple diffusers. But for most home gardeners and hobbyists, a small solar aerator is more than sufficient.
| Pros | Cons |
|---|---|
| Zero electricity cost | Requires direct sunlight for best performance |
| No wiring, no electrician | Battery will eventually need replacement (every 2–4 years) |
| Silent operation | Limited to small ponds (under 4 feet deep) |
| Automatic (sunrise to sunset, battery backup at night) | Not suitable for heavy ice prevention |
| Easy to install and move | Output is lower than grid‑powered units |
Q: How long can a solar aerator run without sunlight?
A: With a fully charged battery, most models run 18 to 72 hours, depending on the battery capacity and operating mode.
Q: Does it work on cloudy days?
A: Yes. The solar panel still generates some power, and the battery fills in the gaps. For extended cloudy periods, choose a model with a larger battery (e.g., 8800 mAh).
Q: Can I leave the aerator in the pond during winter?
A: Small solar aerators are not designed for sub‑freezing temperatures. If your pond freezes solid, remove the aerator and store it indoors. Some models can keep a small hole open in light frost, but they are not ice breakers.
Q: How deep can the air stone be placed?
A: For a standard small solar aerator, keep the air stone within 3–4 feet (1–1.2 meters) of the surface. Deeper water requires more pressure than these small pumps can provide.
Q: Is a solar aerator noisy?
A: No. The brushless DC pump is near‑silent. You will hear only the gentle sound of bubbles.
Q: Do I need to buy extra parts?
A: Most kits include everything: solar panel, pump, tubing, air stone, and ground stake. Just add water.
A solar pond aerator is a simple, reliable, and eco‑friendly way to keep your small water feature healthy. It works by converting sunlight into electricity, using that power to run a silent air pump, and storing extra energy in a battery for nighttime operation. The result is continuous oxygenation and gentle circulation — all without wiring, without monthly bills, and with very little maintenance.
Whether you have a goldfish pond, a backyard water garden, or a hydroponic system, understanding how a solar aerator works helps you choose the right model and place it for maximum sun exposure. Once installed, it runs automatically, giving you cleaner water and happier fish.
